Clamps for Air Tanks

STEEL

STRAP hanging clamps

STEEL

TYPE "A" stamped SUPPORT

This type of support allows for 55 mm between the frame and the tank. It accepts straps up to 35 mm wide.

Steel with a thickness of 4 mm . Electrogalvanised and coated with 50 micron thick layer epoxy black paint. Distance between the chassis of the vehicle and the top of the tank = 55 mm. These supports accept straps up to 35 mm wide and are attached to the chassis by two M10 screws (not included). Sold individually in a plastic bag.
Download datasheet PDF

STEEL

TYPE "B" stamped SUPPORT

STEEL

STEEL STRAPS

These straps have an "E" thickness from 1 to 1.8 mm depending on their composition and diameter. The standard steel versions are painted black and the stainless steel versions are uncoated. Sold individually in a plastic bag.
Download datasheet PDF

Four fastening points at the Close of each loop and the shape of the strap mean that the trunnion and screw can be rotated easily.

INSULATION & TIGHTENING

INSULATING PLASTIC STRAPS

These straps are 1,10 mm thick and prevent the steel strap and the support coming into contact with the air tank. They have their own fastening system and remain in position when fastened. Sold individually in a plastic bag.
Download datasheet PDF

INSULATION & TIGHTENING

LOCKING SYSTEM

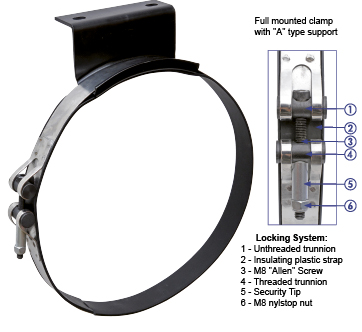

Identical for all clamps , it consists of an M8 “Allen” screw (1) , with a trunnion Dia:16 mm non-threaded (2) , with a trunnion Dia:16 mm threaded (3) , with a security tip (4) and a Nylstop safety nut (5) . Available in ST37 steel “Autoblack” or stainless steel. Sold individually in a plastic bag.
Download datasheet PDF
